Description

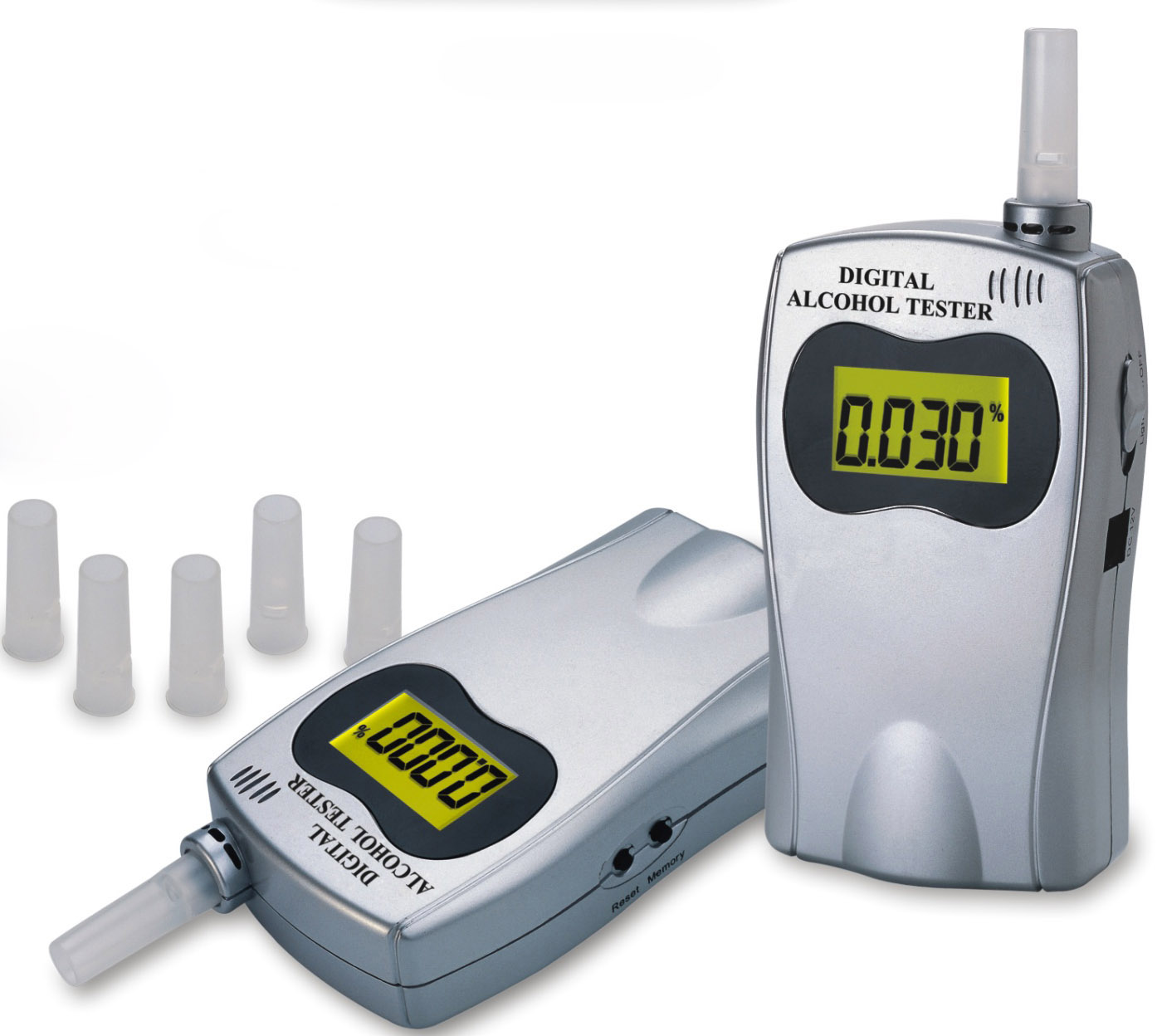

AT570 is a breath alcohol tester implemented in advanced flat surfaced semiconductor technology, featuring good sensitivity and repeatability, low voltage remind,

LED display, simply to operate, compact design and medium size which is conveniently to carry, audible and visible alarm indication when test result is beyond the preset threshold.

Features

Advanced flat-surfaced semiconductor ethanol sensor

Quick response, good accuracy, sensor fault self-checking

SMD assembling, MCU control, stable performance

Power saving design, low voltage remind

Customizable alarming threshold to match local regulations

Visible and audible alarming indication to visible

Switchable test units among mg/I, g/l, %BAC, ‰BAC, mg/100ml to suit for different countries

Application

Car, hotel, home, workshop, office, etc.

Specifications

Sensor typeFlat-surfaced Seminconductor Sensor
Detection range0.000~0.200%BAC; 0.000~1.000g/L;                                                                                                       0.000~2.000‰ BAC
Accuracy±0.02%BAC at 0.05%BAC
Pre-set level0.05%BAC; 0.50‰ BAC; 0.25mg/L; 0.50g/L
Warm-up time15 seconds counting down
Testing time< 5 Sec
DisplayOrange LED
Power6LR61 9V alkaline battery or USB adaptor (no included)
Working environment 5℃ - 40℃, ≤95% RH, No dews
Working time >200 blowing times (full charge)
Dimensions118 x 68 x 29 mm  @150g
